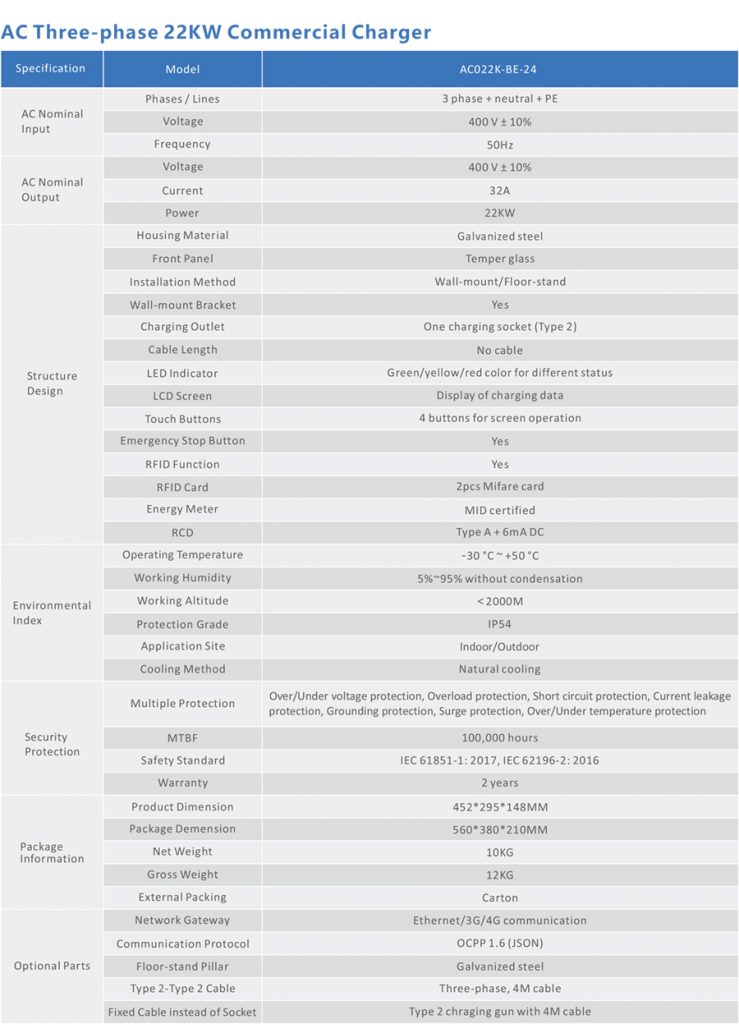

AC Three-phase 22KW Commercial Charger


22KW commercial charger provides fast charging to electric vehicle equipped with three-phase on-board charger. Designed with a type 2 charging socket, the charger is compatible with either type 1 or type 2 cable.

Compliant with the industrial standards, the charger use MID certified meter to ensure accuracy and built-in RCD to secure safety. The charger also includes 6mA DC leakage detction, which eliminates the need for an expensive upcost of RCD type B.

Additional information

Simple but robust

Tempered glass panel and all metal case. IP65 protection grade higher than industrial standard. Simple and elegant product, providing quality inside and out.


Offer creative protection from hit or knockdown, if the inclination angle is over 30°, unit will terminate power automatically, report failure to operating system, removing any danger.


Real-time searching, reservation, fast charging via mobile application. Flexible payment options including RFID card, and mobile paymet such as PayPal, AliPay, ApplePay, etc.


Built for extreme environment such as -30°C ice and snow season or 55°C hot and direct sunshine. Core parts take industrial grade components and offer 15-year design life.


Both control circuit and power circuit are completely isolated. Increased anti-jamming capacity to ensure stable working condition.
